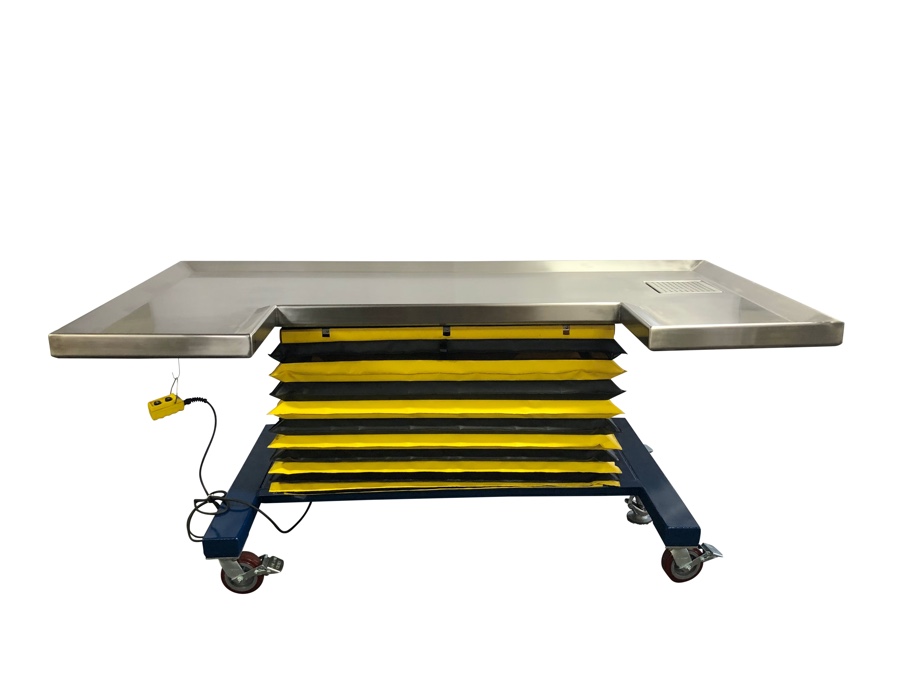

Large Animal Hydraulic Table

Standard Features:

  • Heavy duty table designed for large animal necropsy
  • Heavy duty 6-inch swivel casters allows for easy mobility of the table when not in use
  • Casters available as swivel and/or fixed wheels
  • 11-gauge stainless steel top with marine edge for containing fluids, including 11-gauge subframe
  • Hydraulic scissor lift with easy elevation control
  • Foot operated floor lock to stabilize the table during use
  • Kidney shaped design with deep access area in the middle of one side
  • Table capacity 2,500-pound uniform load
  • Table pitched and sloped to drain connection with quick disconnect hose
  • Water-resistant neoprene-coated PVC bellows guard
  • (2) swivel casters, (2) fixed casters, floor lock
  • Single-acting cylinder actuation
  • Internal 1 HP motor, epoxy-coated with water-tight wiring
  • Work surface adjustable with a maximum height of 54" with fully lowered height of 17"
  • Hand-held push-button height control in a NEMA 4 enclosure
  • Size: 48w x 96d x 54h inches
  • Utilities: Electrical – table factory pre-wired and tested ready for single point connection
Bellows Skirt
Height Adjustment Control
Heavy Duty Casters
Removable Catch Screen
